Comment configurer une connexion VPN pour Windows 10 avec L2TP/IPSec. Manuel VPN Trust.Zone

Etape 1

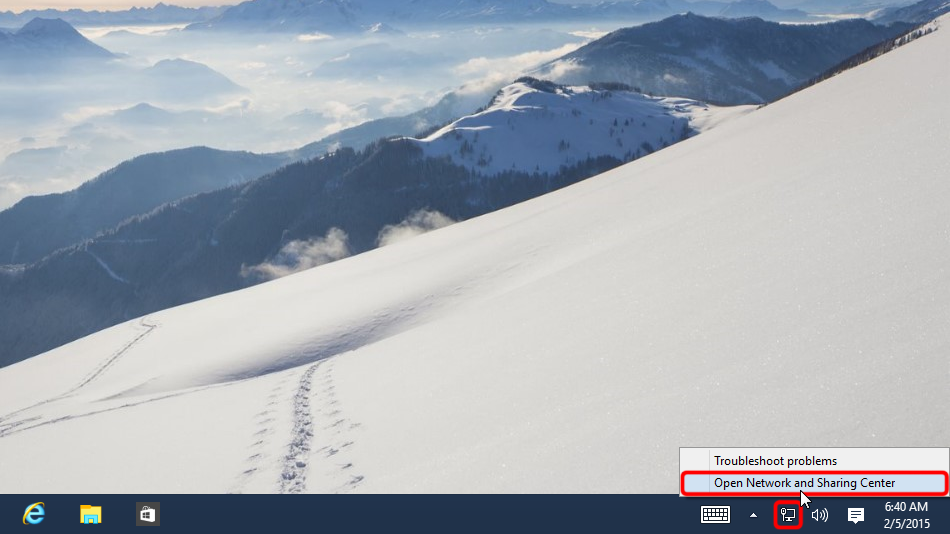

Right click on the network icon in the system tray and then click "Open Network and Sharing Center".

Etape 2

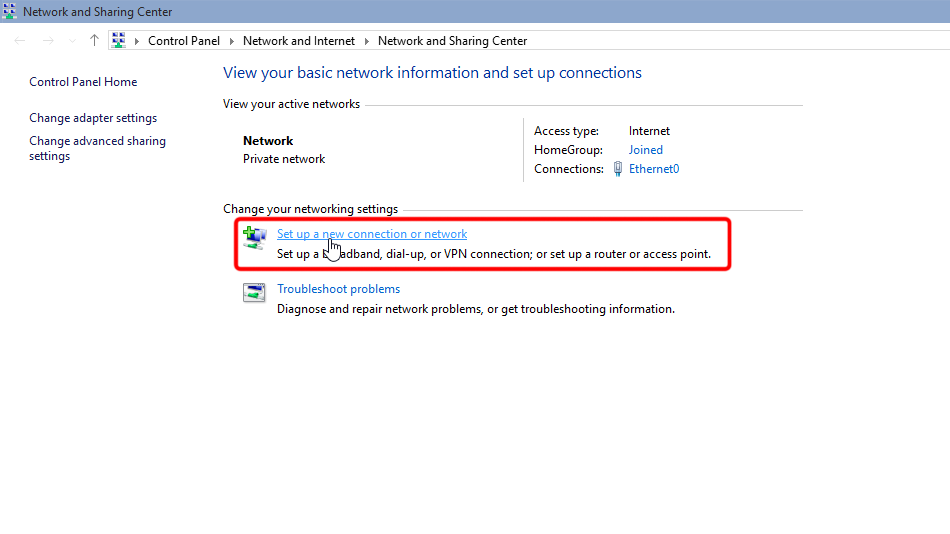

Click "Set up a new connection or network".

Etape 3

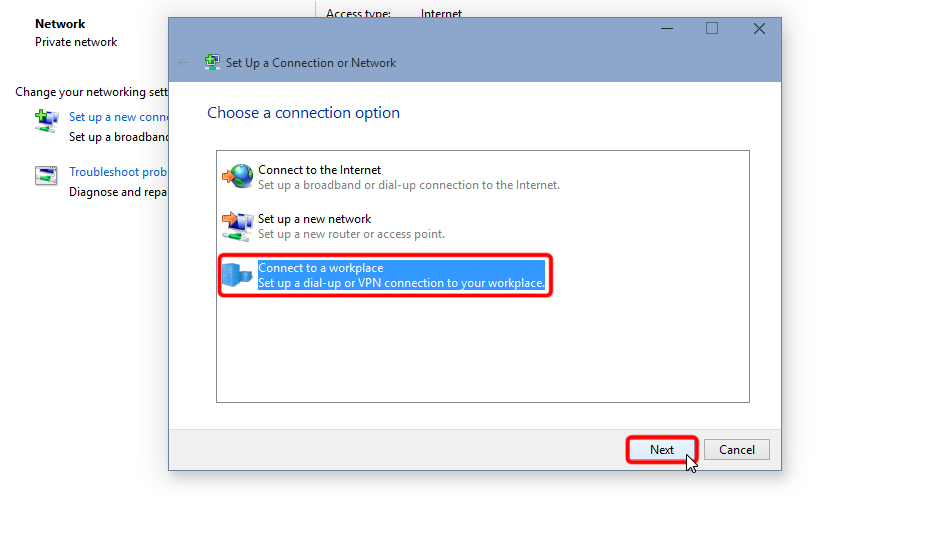

Select "Connect to a workplace" and click "Next".

Etape 4

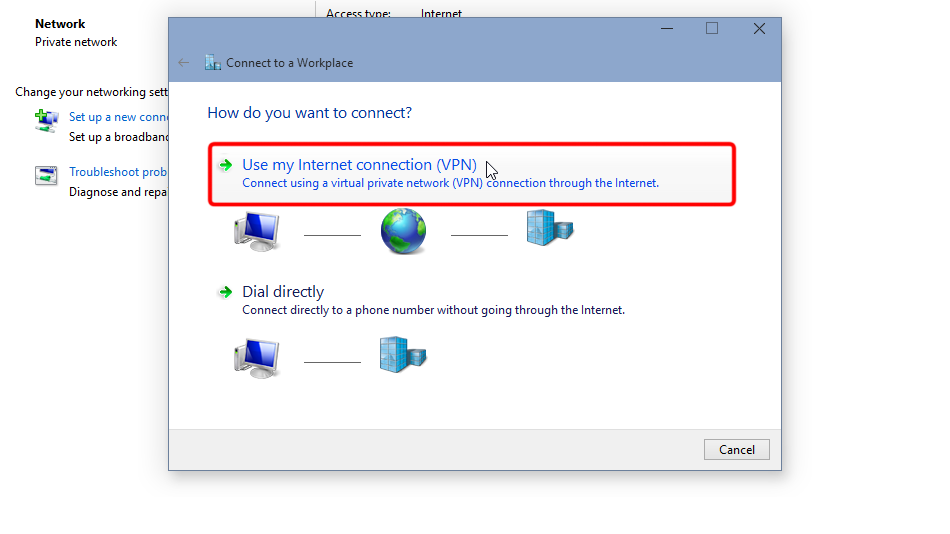

Click on "Use my Internet connection (VPN)".

Etape 5

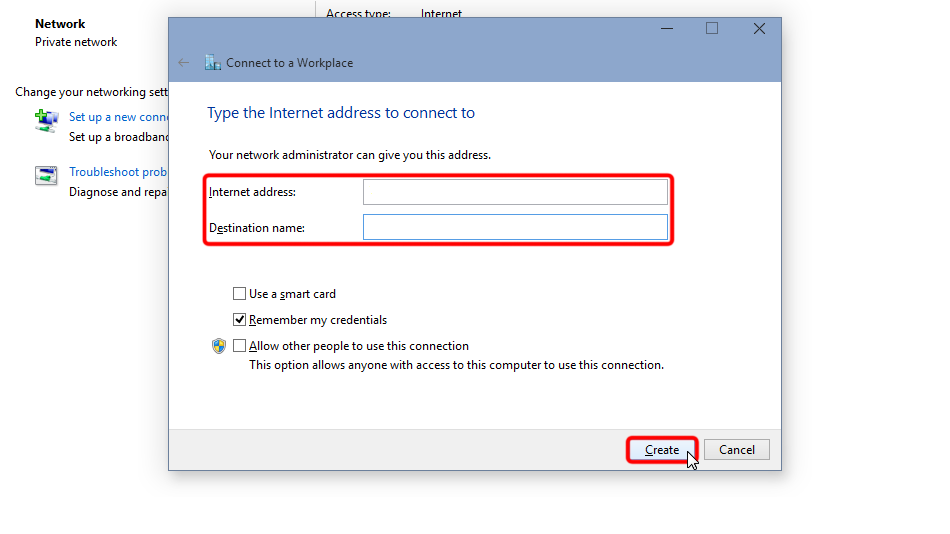

Fill form with values shown below. Check "Remember my credentials" and click on "Create".

Internet address: vpn.trust.zone
Destination name: Trust.Zone-VPN

vpn.trust.zone Trust.Zone-VPN

Etape 6

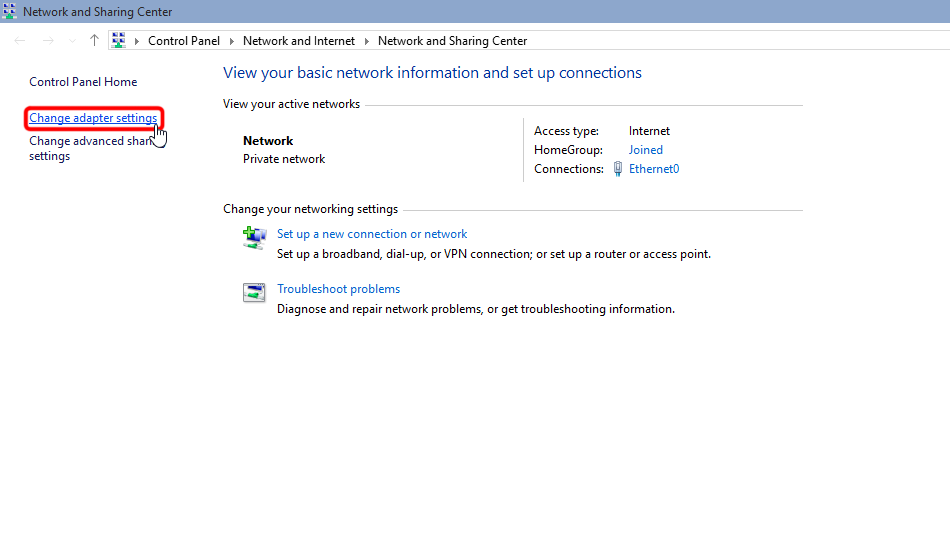

Open the Network and Sharing Center and click on "Change adapter settings".

Etape 7

Click with right on the VPN network adapter and then click on "Properties".

Trust.Zone-VPN

Etape 8

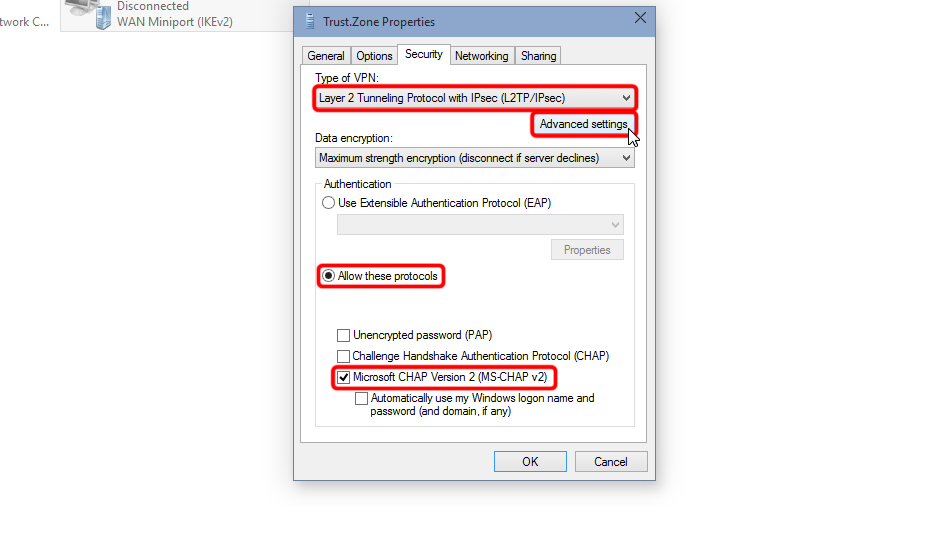

Switch to the tab "Security", select Type of VPN "Layer 2 Tunneling Protocol with IPsec (L2TP/IPsec)" and take over the settings from the screenshot. Then click on "Advanced settings".

Etape 9

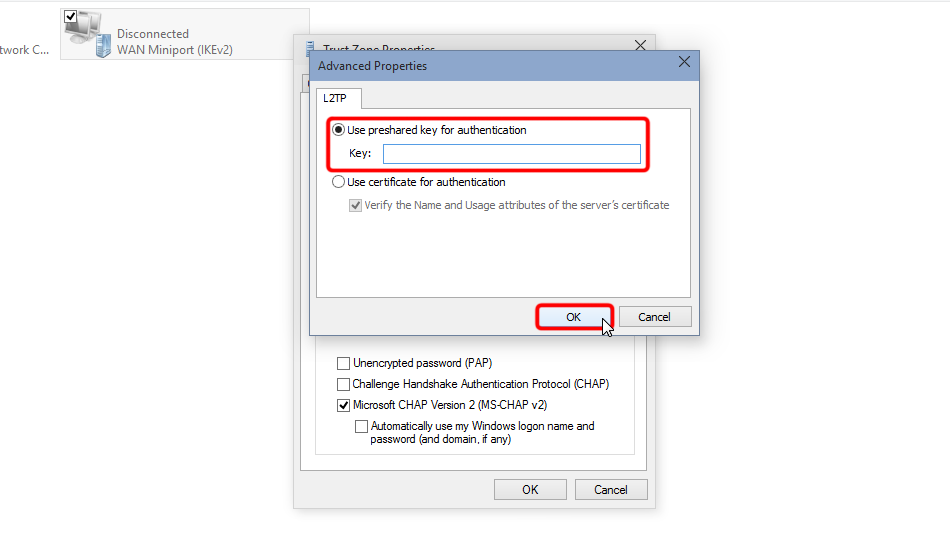

Set "Use preshared key for authentication", it is: trustzone

Trust.Zone-VPN trustzone

Etape 10

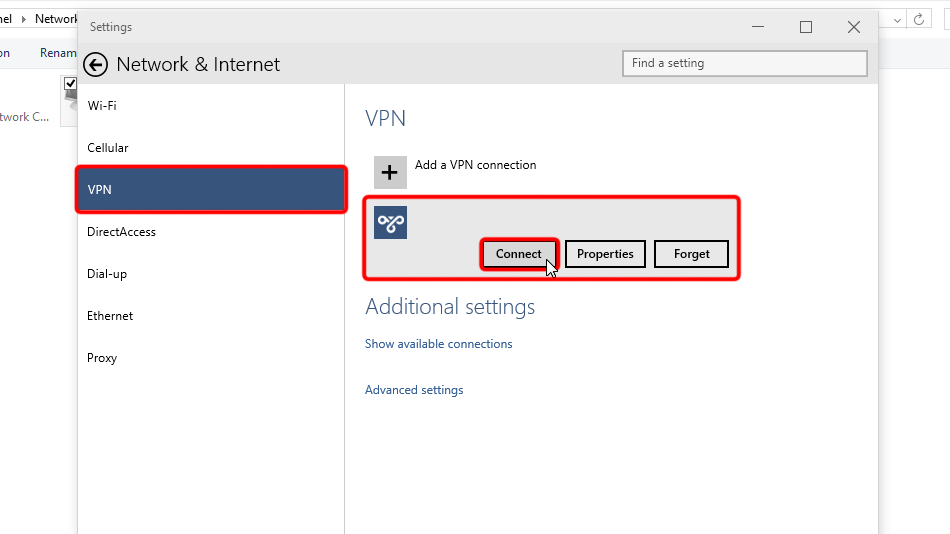

Click on the network icon in the taskbar, select the VPN connection and click on "Connect".

Trust.Zone-VPN

Etape 11

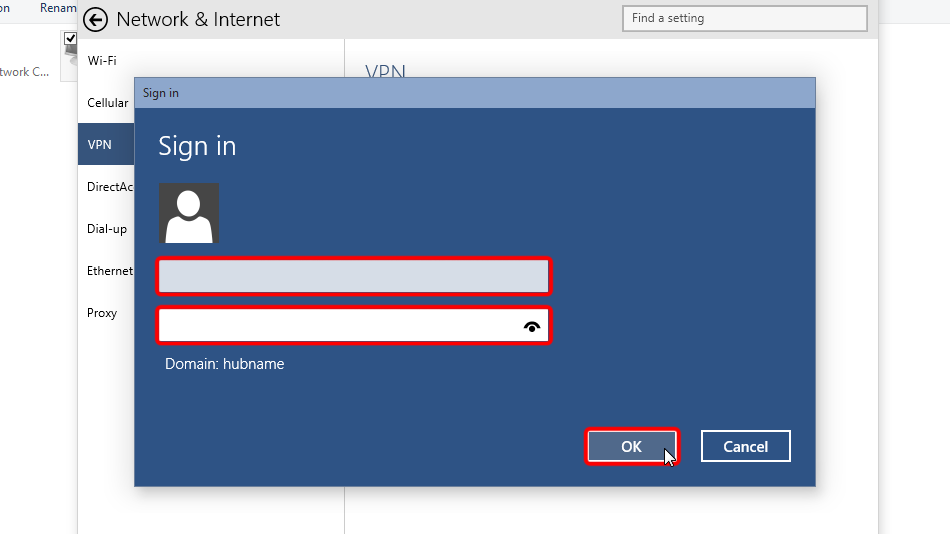

Enter your VPN login credentials and click on "OK".

Username: Caché. Connectez-vous ou inscrivez-vous pour voir.
Password: Caché. Connectez-vous ou inscrivez-vous pour voir.

Etape 12

If connection has been successfully established, it displays "Connected". You can manage your VPN connection in the network settings.

Trust.Zone-VPN

Connection check

Open Trust.Zone Main page or reload it if it is already open in order to check if your connection with Trust.Zone VPN is established correctly.
You can also visit our Connection Check Page.
